AMPLIFIERS
NAD D 3020 V2
Hybrid Digital DAC Amplifier
AMPLIFIERS
NAD D 3020 V2
Hybrid Digital DAC Amplifier
- overview
- specifications
- features
- gallery
- downloads
The NAD 3020, an iconic amplifier, redefined home audio systems in the 1970s with its true high-fidelity sound. Fast forward to the 21st century, and the NAD D 3020 carries on this legacy, seamlessly blending the original concept with the latest high-speed digital technology. Whether your music source is a computer, smartphone, or turntable, the D 3020 delivers a big, warm, and detailed sound that outshines its counterparts. In its V2 iteration, the amplifier not only refines its looks but also introduces a Phono input for vinyl enthusiasts. Upgrading to the NAD D 3020 remains a compelling choice, offering a powerful and modern audio experience that transcends time, making it a cornerstone for any home audio system seeking excellence in sound reproduction.
The NAD 3020, an iconic amplifier, redefined home audio systems in the 1970s with its true high-fidelity sound. Fast forward to the 21st century, and the NAD D 3020 carries on this legacy, seamlessly blending the original concept with the latest high-speed digital technology. Whether your music source is a computer, smartphone, or turntable, the D 3020 delivers a big, warm, and detailed sound that outshines its counterparts. In its V2 iteration, the amplifier not only refines its looks but also introduces a Phono input for vinyl enthusiasts. Upgrading to the NAD D 3020 remains a compelling choice, offering a powerful and modern audio experience that transcends time, making it a cornerstone for any home audio system seeking excellence in sound reproduction.
| Audio Specs | |
|---|---|
| Audio Specs Rated Power at 8 | 2 x 30 Watts |
| Audio Specs IHF Dynamic Power 8 ohms | 2 x 60 Watts |
| Audio Specs 4 ohms | 2 x 100 Watts |
| Audio Specs 2 ohms | 2 x 150 Watts |
| Audio Specs Signal/Noise Ratio (A-weighted, ref. 1 Watt) | ≥90dB |
| Audio Specs Channel Separation 1kHz | ≥75dB |
| Audio Specs 10kHz | ≥65dB |
| Audio Specs Channel Balance | 0 ±0.3dB |
| Audio Specs Frequency Response (20Hz – 20kHz) | 0dB to -0.3dB |
| Audio Specs Total Harmonic Distortion | ≤0.005% |
| Audio Specs Maximum input level | 5V |
| Audio Specs IMD (SMPTE) | 0.02% |
| Audio Specs IMD (CCIF) | 0.003% |
| MM Phono Input | |
|---|---|
| MM Phono Input Phono Signal-to-Noise Ratio | >82 dB (200 ohms source, A-weighted, ref. 500 mV out) |
| MM Phono Input | 76 dB (MM cartridge source, IHF; A-weighted, ref. 500 mV out) |
| MM Phono Input Input sensitivity | 1.15 mV (ref. 500 mV out, Volume maximum) |
| MM Phono Input Maximum input signal at 1kHz | >90 mVrms (ref. 0.1 % THD) |
| MM Phono Input Frequency response | ±0.3 dB (20 Hz – 20 kHz) |
| General | |
|---|---|
| General Standby Power | ≤0.5 Watts |
| General Supports bit rate/sample rate | up to 24/192 (via Digital Audio input) |
| General Unit Dimensions (W x H x D) Gross | 58 x 186 x 219mm |
| General | 2 5/16 x 7 3/8 x 8 5/8” |
| General Net Weight | 1.38kg (3.05lb) |
| General Shipping Weight | 2.1kg (4.6lb) |
Cutting-Edge Connectivity

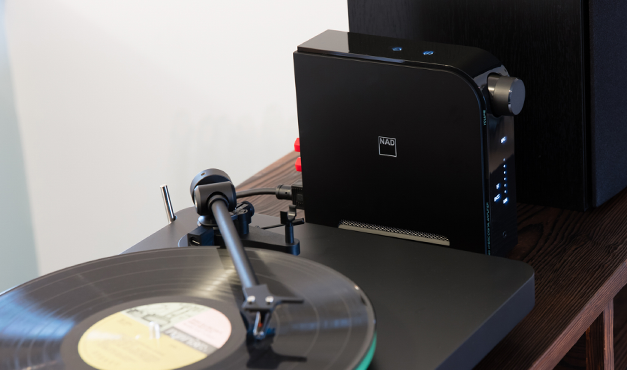

The D 3020 V2 offers versatile inputs, including coaxial and optical for digital sources and a sophisticated MM Phono input for analogue devices. With added features like a PreOut for enhanced connectivity, it ensures seamless integration into your home audio system, accommodating various media sources with precision.
Powerful Performance
Don’t be deceived by the 30W per channel output – NAD’s PowerDrive™ technology redefines performance. This compact power amp, designed by Bjorn Erik Edvardsen, delivers superior sound quality, efficiently driving challenging loudspeakers without distortion. Realize the potential of true high-fidelity sound with this powerhouse amplifier.
Wireless Streaming Revolution
Embrace the future of music with Bluetooth® capability. The D 3020 V2 allows wireless streaming from smartphones, tablets, or laptops, supporting aptX® for exceptional audio quality. Experience the convenience and freedom of streaming without compromising on sound integrity, making it an ideal addition to any modern home audio system.
Eco-Friendly Innovation
The D 3020 V2 is more than just a powerhouse – it’s environmentally conscious. With an efficient design that consumes only 20% of the power compared to traditional Hi-Fi amplifiers, this product combines top-notch musical performance with reduced energy consumption. NAD’s commitment to eco-friendly manufacturing ensures a greener choice for your home audio setup.
Cutting-Edge Connectivity
The D 3020 V2 offers versatile inputs, including coaxial and optical for digital sources and a sophisticated MM Phono input for analogue devices. With added features like a PreOut for enhanced connectivity, it ensures seamless integration into your home audio system, accommodating various media sources with precision.
Powerful Performance
Don’t be deceived by the 30W per channel output – NAD’s PowerDrive™ technology redefines performance. This compact power amp, designed by Bjorn Erik Edvardsen, delivers superior sound quality, efficiently driving challenging loudspeakers without distortion. Realize the potential of true high-fidelity sound with this powerhouse amplifier.
Wireless Streaming Revolution
Embrace the future of music with Bluetooth® capability. The D 3020 V2 allows wireless streaming from smartphones, tablets, or laptops, supporting aptX® for exceptional audio quality. Experience the convenience and freedom of streaming without compromising on sound integrity, making it an ideal addition to any modern home audio system.
Eco-Friendly Innovation
The D 3020 V2 is more than just a powerhouse – it’s environmentally conscious. With an efficient design that consumes only 20% of the power compared to traditional Hi-Fi amplifiers, this product combines top-notch musical performance with reduced energy consumption. NAD’s commitment to eco-friendly manufacturing ensures a greener choice for your home audio setup.
MANUAL
DATA SHEET
SOFTWARE
To download a copy of the firmware for your NAD unit please contact support
MANUAL
DATA SHEET
SOFTWARE
To download a copy of the firmware for your NAD unit please contact support
